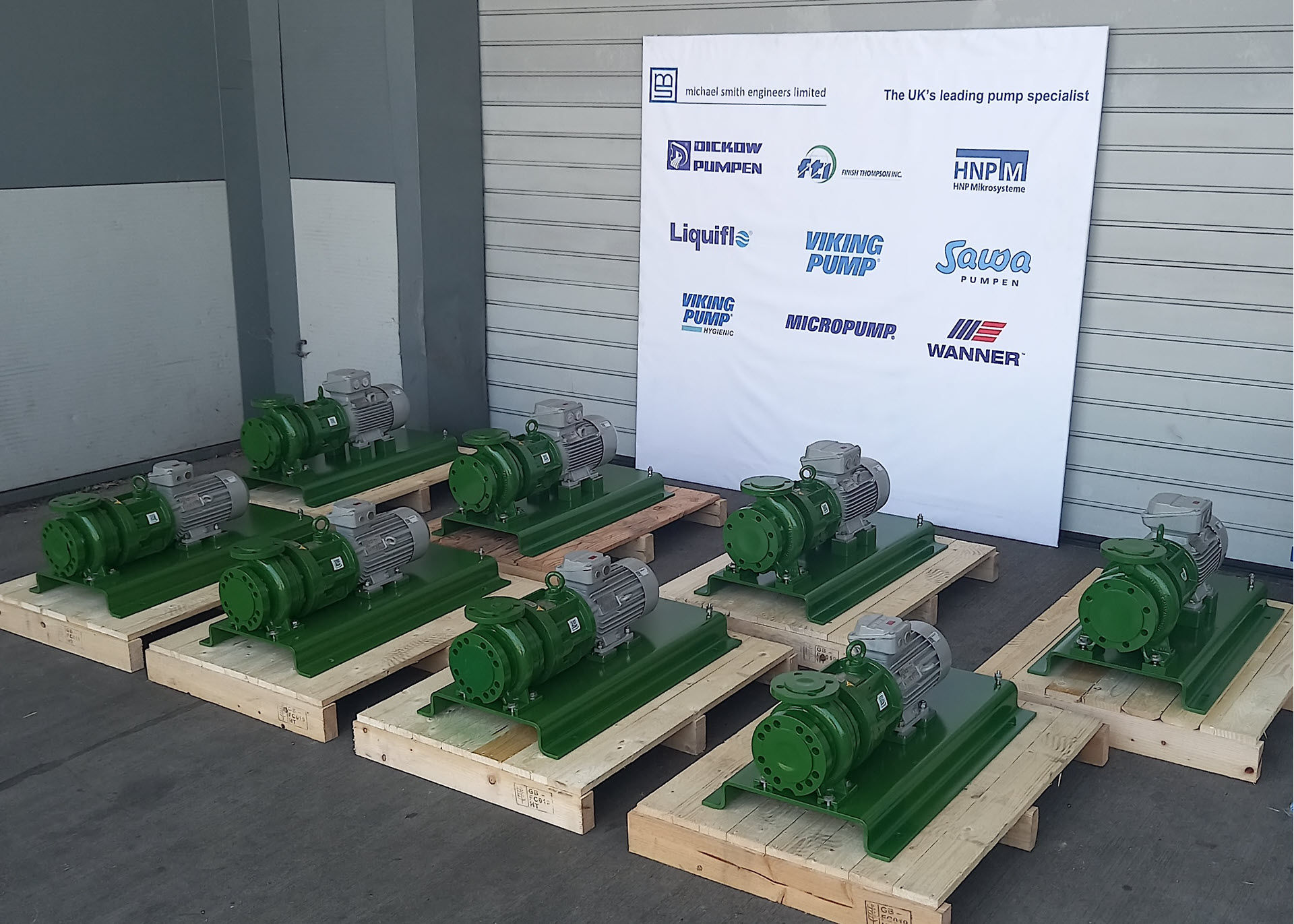

These Dickow KMB magnetic-drive centrifugal pumps were dispatched to Speyside in the North-East of Scotland, renowned as a premier region for Scotch whisky production.

The pumps are part of a multi-million-pound investment by one of Scotland’s leading whisky producers. Although they will not intended for pumping whisky and thus do not require hygienic ratings, they are designed to handle high-temperature condensate in a clean environment designated as ATEX zone 2. Consequently, the pumps are made of 1.4408 stainless steel for exceptional corrosion resistance and are seal-less to prevent leaks. Their close-coupled design optimises space usage in the production area.

There are four KMB h 40/125 pumps with 2.2 kW motors, providing flow rates of 20 m³/hr, and four KMB h 50/125 pumps with 3 kW motors, providing flow rates of 38 m³/hr.

Dickow magnetic drive centrifugal pump KMB h 40/125 with 65x40mm DIN PN16 flanges close coupled to 2.2 kW 2 pole 400/3/50 IE3 ATEX II 3G Ex ec IIC T3 Gc IP55 motor with thermistors on baseplate.

• Liquid - Condensate
• Flow Rate - 20 m³/hr
• Pressure - 13 m differential head
• Temperature - 100°C
• Viscosity - 0.2 cP
• Wetted Materials - 316 Stainless Steel / Silicone Carbide / Alloy-C

Dickow magnetic drive centrifugal pump KMB h 50/125 with 80x50mm DIN PN16 flanges close coupled to 3 kW 2 pole 400/3/50 IE3 ATEX II 3G Ex ec IIC T3 Gc IP55 motor with thermistors on baseplate.

• Liquid - Spirit Condensate
• Flow Rate - 38 m³/hr
• Pressure - 13 m differential head
• Temperature - 100°C
• Viscosity - 0.2 cP
• Wetted Materials - 316 Stainless Steel / Silicone Carbide / Alloy-C
