While we’re well known for our pump solutions in ‘messy’ applications, we also offer ranges of hygienic pumps designed for the food and pharmaceutical industries.

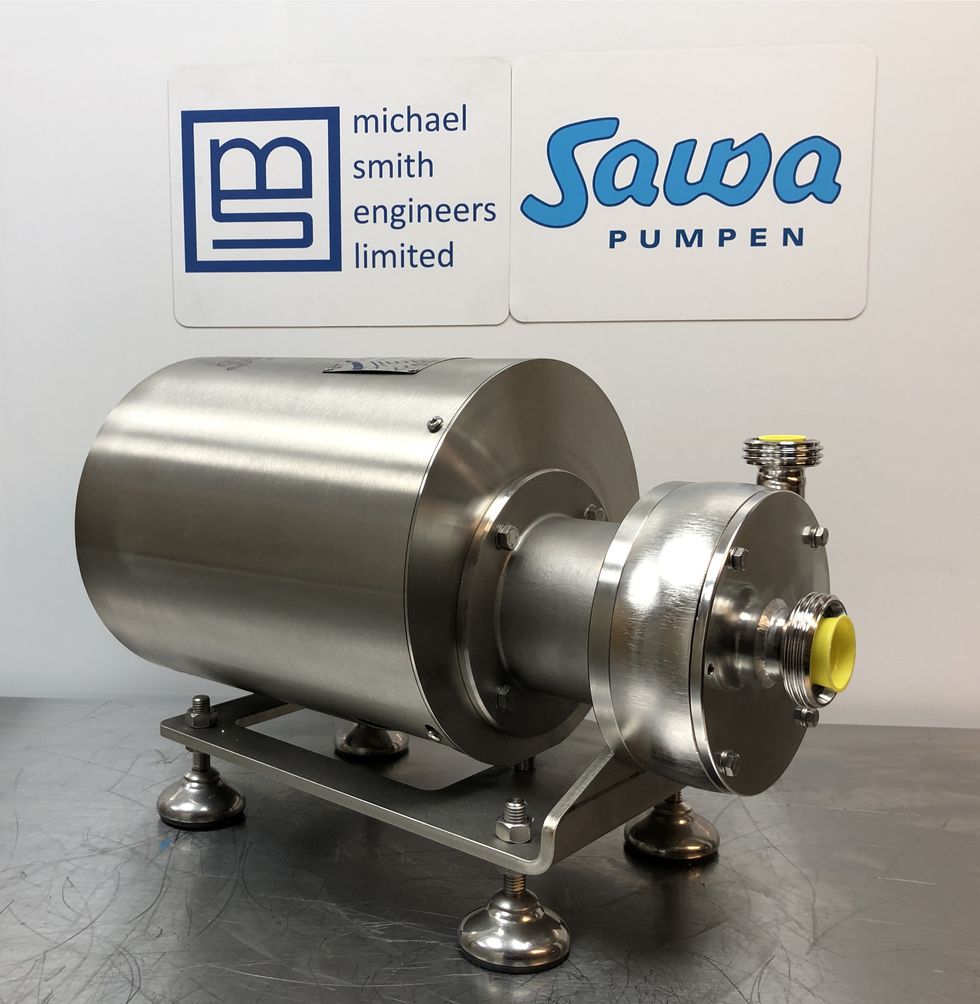

One example is this LE130 hygienic centrifugal pump from SAWA Pumpentechnik AG. Built from medical-grade 1.4435 stainless steel with electropolished wetted parts and DIN 11851 connections; this pump offers excellent chemical resistance, easy maintenance, and the highest level of hygienic standards.

Inside the motor shroud, you’ll find a 1.1 kW, 2 pole motor, covering a flow rate of 3.4 m³/hr against a discharge head of approximately 15 m. This unit will be used to recirculate CIP fluid at an operating temperature of 60-65ºC for a pharmaceutical application.

SAWA centrifugal pump LE130-32/20-MT with threaded DN 32 suction & DN 20 discharge DIN 11851 connections close coupled to a 1.1 KW 2 pole 400/3/50 Hz IP55 IE3 motor. Includes stainless steel motor shroud and feet.

• Liquid - CIP fluid (2% caustic solution)
• Flow Rate - 3.41 m³/h
• Differential Pressure - 1.44 bar
• Differential Head - 14.4 m
• Temperature - 60 to 65ºC
• Viscosity - 0.52 cP
• Wetted Materials - Stainless Steel, EPDM, Carbon / Silicon Carbide
