Hybrid Hygienic Centrifugal Pumps

Overview

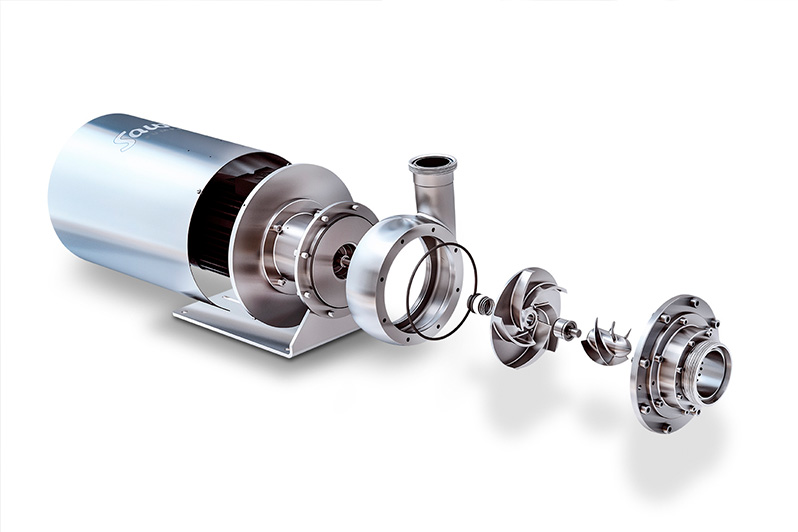

The Sawa LES series stainless-steel hybrid centrifugal pumps are an excellent alternative to side channel pumps. They have a specially developed pump cover with an inducer and an integrated recirculation system, thus allowing it to be used successfully as a self-priming pump.

Typical applications include loading/unloading and CIP supply/return.

Suitable for foodstuffs, bevereages, alcohols, oils, solvents, emulsions, pharmacutical products, chemicals, fruit juices, fruit pulp, beer, cooking oil, fats.

Foodstuffs

Liquid egg Concentrates Vitamins Cream Sauces Sugar solutions Seasonings CIP return Bulkheads Cocoa butter

Vinegar Flavourings Milk Buttermilk Cooking oil Salt liquor Fatty acids Couverture Fats

Beverages

Mineral water Spirits Wine Brewers yeast Lemon juice Liqueur Vegetable juices

Syrup Fruit juices (including fruit pulp) Beer Alcohol CIP cleaning  Iced tea

Pharmaceuticals

Perfumes Alcohols Aromas WFI HPW Dyes Biotechnology applications

Emulsions Herbal extracts Ultrapure water PUW CIP / SIP purification Infusion solutions

Chemicals

Alcohols Ethanol Hydrogen peroxide Urea Biodiesel

Methanol Solvents Deionized water Glycol solutions Condensates

Features & Benefits

Feature	Benefit
Flow optimised volute casing and impeller design	Offers high efficiences of up to 72%
Excellent pumping behaviour with liquids containing gas	Offers greater capability of pumping liquids such as beer, soft drinks and carbonated liquids
Quiet operation	Enables pump to be located close to operators and reduces overall sound level in the production area
Dead space-free design (hygienic design)	Allows great variety of liquids to be pumped and easier maintenance
CIP and SIP compliant	Allows easy, fast and efficient cleaning of pump
Simple design and easy seal change	Reduces pump downtime and enable pump to be serviced in situ if required
Low maintenance costs and long service life	Reduces operating costs and reduces pay back time
Rugged design can cope with fast temperature changes	Allows greater flexibility in pumped product and cleaning processes
Various mechanical seal systems available	Allows wide range of chemicals to be pumped



Specifications

Flow rate	up to 100 m³/h
Delivery head	up to 70 m
Temperature range	-30°C to 130°C, max. 150°C (SIP)
Maximum viscosity	up to 100 mPas
Nominal maximum pressure	PN10 to PN63

• ATEX for zones 1, 2, 21 and 22
• Pharma design for maximum safety, reliability and hygiene (surface roughnesses down to Ra 0.4 μm)
• Magnetic coupling version LESM for crystallising, toxic, flammable and environmentally hazardous liquids
• Bearing housing for special requirements
• Mobile with sturdy trolley and accessories to customer requirements
• Complete draining at the lowest point of the pump
