What may seem like a straightforward pump application can often demand far more expertise than anticipated. Take, for example, this G13 Hydra-Cell multi-diaphragm pump from Wanner International that is going to be pumping slightly salty water at 400 l/hr. At first glance, this might not appear to be a particularly challenging task.

However, the requirements for this application make the selection process more complex. Since the water is used in a hygienic application, a stainless-steel pump is essential. Additionally, the flow rate must be precise and accurately controlled, necessitating a positive displacement, pulse-free pump. Finally, with a discharge pressure of around 70 bar, the G13 stands out as the ideal solution.

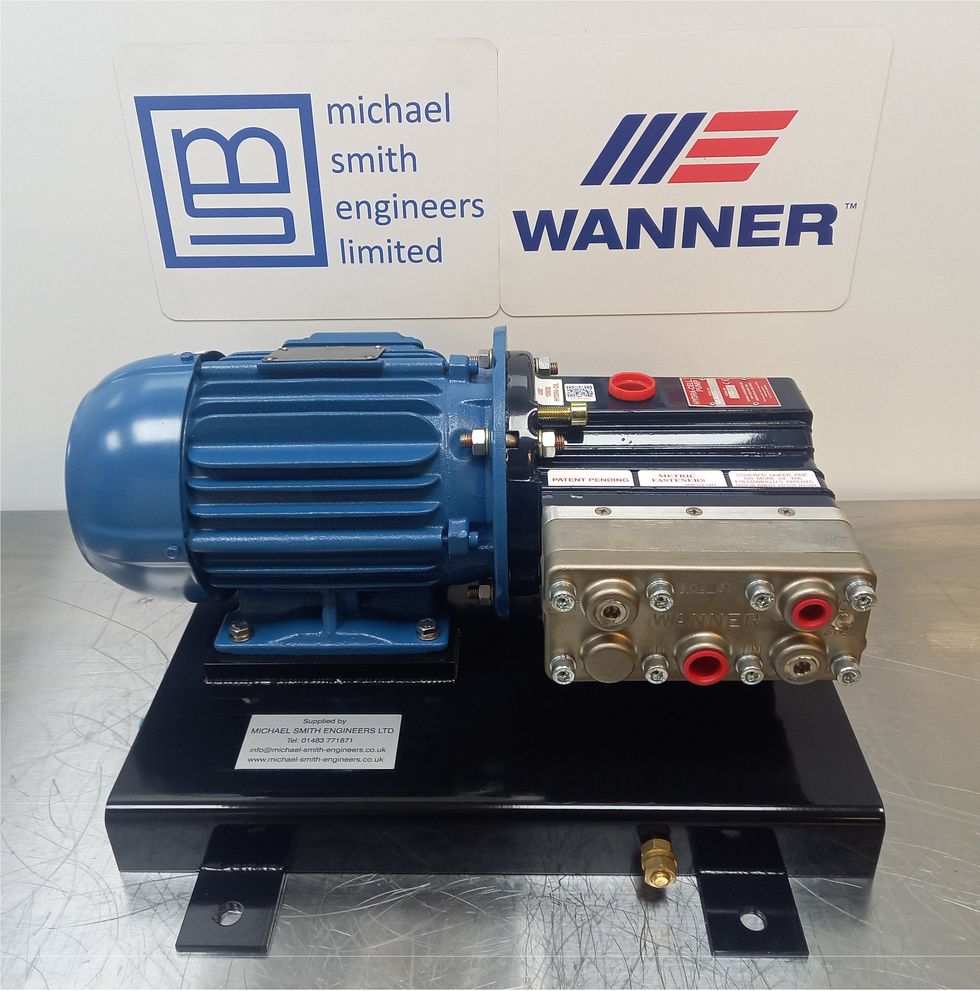

Wanner pump model G13EKSTHFEHA with ½” x ⅜” BSPT connections close coupled to 2 HP (1.5 kW) 4 pole 460 V 3 phase 30-60 Hz IP55 motor with thermistors on baseplate

• Liquid - Water / salt mix
• Flow Rate - 400 l/hr
• Pressure - 70 Barg
• Temperature - Ambient +20°C
• Viscosity - 1 cP
• Wetted Materials - Kel-cell / 316 stainless steel / Buna-N / Elgiloy
