G Series Pumps

Overview

The simple design of the Hydra-Cell Industrial pumps make them durable and able to handle the fluids that can destroy other pumps.  These positive displacement pumps give smooth, near pulse free output accurately, reliably and repeatedly.

Hydra-Cell pumps are equally suited to high and low pressure applications.  They are highly efficient, heavy-duty pumps for liquid transfer, metering and dosing, injection and spraying of the widest range of liquids.

Hydra-Cell seal-less diaphragm pumps can handle corrosive, non-lubricating and abrasive liquids and slurries and can even run dry without damage.

The range covers flows between 0.4 to 248 l/min at maximum discharge pressures between 20 and 170 bar, depending on the model and materials of construction.

Hydra-Cell Pumps Seal-Less Design Advantages

Hydra-cell positive displacement diaphragm pumps feature a hermetically sealed pumping chamber so there are no mechanical seals, packing or cups to leak or replace. This seal-less design coupled with the use of check valves in the pump head enable Hydra-Cell to pump abrasives and particulates that would damage other types of pumps.  Also Hydra-Cell can run dry indefinitely without damage to the pump and the multiple diaphragm design ensures virtually pulse-less, linear flow without the need for pulsation dampeners.

Economical

• Can save approximately 30% to 50% on purchase costs because Hydra-Cell uses lower kilowatt motors to achieve the same flow rates and pressures as other pumps.

• Compact design has a smaller footprint allowing more efficient use of floor space.

• Operates at 85-90% energy efficiency to reduce operating costs.

• Hermetically sealed design reduces maintenance and repair costs and minimizes the cost of spare parts compared to other types of pumps.

Versatile

• Variety of styles and models to pump a wide range of flows and discharge pressures.

• Hydraulically-balanced diaphragms can pump low to high viscosity liquids through the complete pump pressure range.

• Available in a wide variety of wetted construction materials to meet a broad range of applications and ensure extended pump life even when handling corrosive and aggressive liquids.

• Can be supplied with SAE, ANSI or DIN flanges and IEC or NEMA motor mounts.

• ATEX certification available or other certification for specific applications or to meet international standards.

• Design allows for simple exchange of pump head materials and can accommodate mixing different materials with one pump head.

Capable

• Hydra-Cell can pump abrasive solids and particulate matter up to 800 microns (depending on pump model) and 9 hardness (Mohs) without the need for fine filtration.

• Multiple diaphragm design gives virtually pulse free flow that exceeds API 675 standards for accuracy, linearity and repeatability.

• Low-shear pumping action protects the integrity of long-chain structures.

Reliable

• Hydra-Cell can dry run without damage.

• Robust design allows operation even in difficult operating conditions.

• Hermetically sealed - no mechanical seals, packing or cups to leak or replace.

• Up to 6,000 hours between lubricating oil changes.

• Hydra-Cell have experience of pumping acids, slurries and liquids containing up to 40% of non-dissolved solids.

• The design ensures the pumped fluid is not used for internal lubrication of the pump

• No tight tolerances in the pump head which can be prone to corrosion or solid particles.

Environmental

• Liquids are hermetically sealed from the atmosphere - no leak path for toxic vapours or harmful gasses.

• No dynamic seals to leak any volatile organic compounds (VOC).

• Hydra-Cell pumps have high hydraulic efficiency - lower energy costs to operate pump.

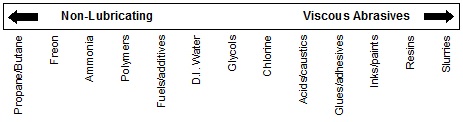

Hydra-Cell Fluid Handling Capability

Handles Abrasives and Low-to-High Viscosity Fluids

From drinking water to highly viscous cutting fluids, Hydra-Cell multiple diaphragm pumps can handle the full spectrum of process fluids while maintaining high efficiency operation. These can include non-lubricating fluids as well as difficult fluids with abrasives that can damage or destroy other types of pumps.  This makes Hydra-Cell an ideal choice in a wide range of industries and when serving multiple applications in one facility.

Hydra-Cell Primary Pumping Applications

Markets and Industries Served

Features & Benefits

Specifications

Materials of Construction

Common Specifications

Max temperature
Metallic heads:          121°C
                                (consult factory for correct component selection
                                for temperations above 71°C)

Non-metallic heads:   60°C

Shaft Rotation
Bi-directional

Other Info

Downloads

• Hydra-Cell G03 Series Datasheet
• Hydra-Cell G04 Series Datasheet
• Hydra-Cell G10 Series Datasheet
• Hydra-Cell G12 Series Datasheet
• Hydra-Cell G15 Series Datasheet
• Hydra-Cell G35 Series Datasheet
• Hydra-Cell Kel-Cell Diaphragm Position Control Catalogue
• Hydra-Cell Newsletter on high pressure cleaning applications
• Hydra-Cell SD Series Catalogue
• Hydra-Cell G20 Series Datasheet
• Hydra-Cell G25 Series Datasheet
• Hydra-Cell G17 Series Datasheet
• Hydra-Cell G66 Series Datasheet

Useful Links

 Hydra-Cell Crank Shaft Design

 Hydra-Cell Kel-Cell Diaphragm Protection

 Hydra-Cell Wetted Materials of Construction

 Hydra-Cell Wobble Plate Design

Case Studies

Chemical pumps for low flow, high pressure This interesting looking unit is being used to pump a variety of low viscosity chemicals at high pressure. Unfortunately, as this is part of a confidential research project, we are unable to provide further process liquid details. What we can disclose, however, is that the pump in question is a Wanner Hydra-Cell G10 diaphragm pump, coupled via a NORD gearbox to a 2.2 kW motor, achieving a maximum flow rate of approximately 7 lpm at 100 bar discharge pressure. You may also note that the motor is equipped with forced fan ventilation. This feature allows the motor to operate at reduced speeds, enabling flow rates as low as 1 lpm when required.
