HYDRA-CELL DIAPHRAGM PUMP MODEL G04XDRGHFEHG FOR DEIONISED WATER
Diaphragm pump for hydrogen production

The production of green hydrogen is a rapidly growing sector, and Michael Smith Engineers has been at the forefront from the very beginning. With our extensive experience, we offer a range of high-performance pumps tailored to meet the unique challenges of hydrogen production.

One key application is the circulation of deionised water at high pressure - a task perfectly suited to the Hydra-Cell G04 seal-less diaphragm pump from Wanner International Ltd. Powered by a 3 kW, 4 pole motor, this pump delivers a reliable flow of approximately 8 LPM at discharge pressures of up to 100 bar. The G04 can be offered to cover flow rates up to 11.2 LPM against discharge pressures up to 172 bar.

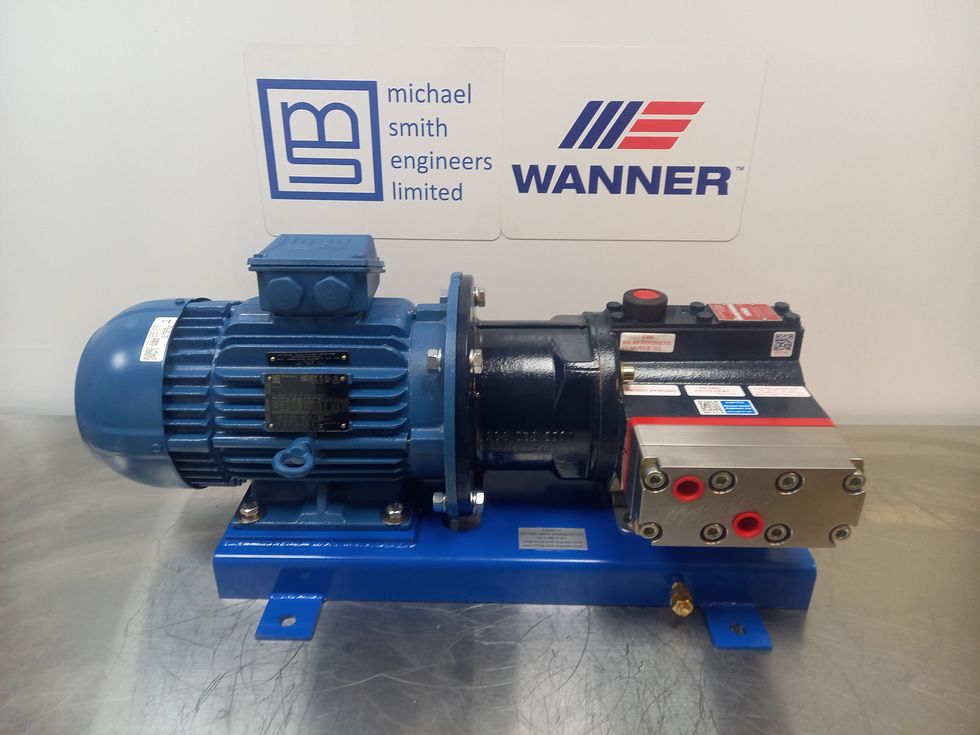

Wanner Hydra-Cell pump model G04XDRGHFEHG c/w motor adapter and coupling close coupled to a 3 kW 4 pole B35 230/400 volt 3 phase 50 HZ IP55 motor with thermistors on a baseplate

  • Liquid - DI Water
  • Flow Rate - 7 to 8 l/min
  • Pressure - 2 to 100 Bar
  • Temperature - 5 to 70°C
  • Viscosity - < 1 cP
  • Wetted Materials - 316L Stainless Steel / FKM / Elgiloy
