Magnetic Drive Gear Pumps for Safe Corrosive Chemical Transfer

LIQUIFLO P SERIES PUMPS FOR PUMPING CORROSIVE CHEMICALS
	Here we have another pair of magnetic-drive gear pumps destined for transfer of corrosive chemicals. Both are Poly-Guard Series PFA-lined external gear pumps from Liquiflo. The main performance difference between the two pumps is the flow rate. The P3 model, on the right, close coupled an ATEX rated 0.55 kW, 4 pole motor will give a flow rate of approximately 12 lpm. The larger P6 model, close coupled to an ATEX rated 1.1 kW 4 pole motor can deliver up to 43 lpm. The pumps have non-metallic wetted components, which makes them ideal for high-purity liquid handling. Liquiflo pump model P6UPPEE410BEB c/w 1.1 kW 4 pole 400 volt 3 phase 10-50 Hz ATEX Ex II 3G Ex ec IIC T3 Gc IP55 motor. Liquiflo pump model P3UPPEE310BEU c/w 0.55 kW 4 pole 400 volt 3 phase 10-50 Hz ATEX Zone 2 IP55 B5 motor.

LIQUIFLO P SERIES PUMPS FOR PUMPING CORROSIVE CHEMICALS

Chemical transfer gear pumps

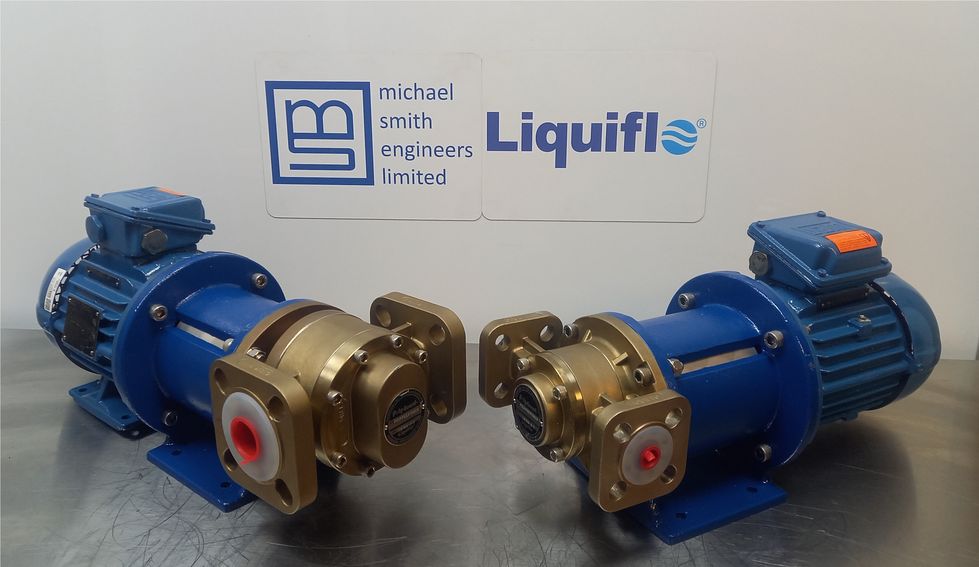

Here we have another pair of magnetic-drive gear pumps destined for transfer of corrosive chemicals. Both are Poly-Guard Series PFA-lined external gear pumps from Liquiflo.

The main performance difference between the two pumps is the flow rate. The P3 model, on the right, close coupled an ATEX rated 0.55 kW, 4 pole motor will give a flow rate of approximately 12 lpm. The larger P6 model, close coupled to an ATEX rated 1.1 kW 4 pole motor can deliver up to 43 lpm. The pumps have non-metallic wetted components, which makes them ideal for high-purity liquid handling.

Liquiflo pump model P6UPPEE410BEB c/w 1.1 kW 4 pole 400 volt 3 phase 10-50 Hz ATEX Ex II 3G Ex ec IIC T3 Gc IP55 motor.

Liquiflo pump model P3UPPEE310BEU c/w 0.55 kW 4 pole 400 volt 3 phase 10-50 Hz ATEX Zone 2 IP55 B5 motor.
