Most of the lobe pumps we supply are used in the food, beverage, or pharmaceutical industries. However, this CP10 hygienic rotary lobe pump from Viking Pump Hygienic is being delivered to a customer for use in an industrial application.

The pump will transfer triethylene glycol, where the combination of a viscous liquid and a preference for stainless steel makes a rotary lobe pump a suitable choice.

The pump is paired with an ATEX-rated Nord 0.75 kW gearmotor, providing a flow rate of approximately 30 litres per minute.

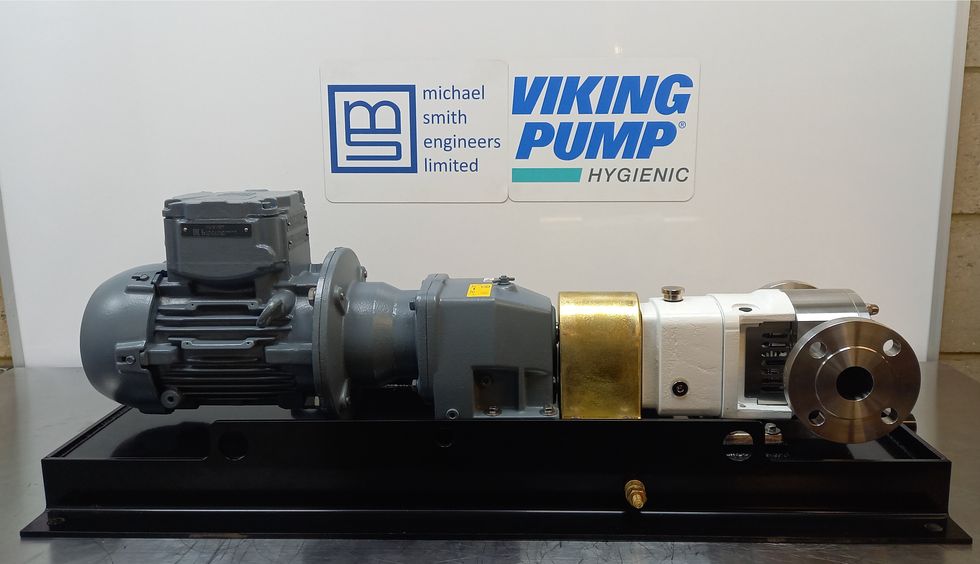

Viking hygienic mechanically sealed lobe pump CP10/0011/05 with 1.5”x1.5” ANSI 150# flanges long coupled to 3.89 ratio gearbox with 0.75 kW 4 pole 400/3/50 Hz IP55 ATEX II 2G Ex db IIB T4 Gb motor on baseplate.

• Liquid - Triethylene glycol
• Flow Rate - 30 l/min
• Pressure - 1.41 Bar differential pressure
• Viscosity - 25 to 170 cP
