Self-Priming Hygienic Side-Channel pumps

Overview



These pumps provide a gentle and quiet pumping action. The pump features an impressive suction capacity (up to 7 m) and an excellent pumping behaviour with liquids containing gas. It can also be operated in both directions.

The HD pumps are CIP and SIP capable and can therefore be cleaned quickly and efficiently.

Suitable for foodstuffs, beverages, alcohols, oils, solvents, emulsions, pharmaceutical products, chemicals, fruit juices, fruit pulp, beer, cooking oil, fats.

Foodstuffs

Liquid egg Concentrates Vitamins Cream Sauces Sugar solutions Seasonings CIP return Bulkheads Cocoa butter

Vinegar Flavourings Milk Buttermilk Cooking oil Salt liquor Fatty acids Couverture Fats

Beverages

Mineral water Spirits Wine Brewers yeast Lemon juice Liqueur Vegetable juices

Syrup Fruit juices (including fruit pulp) Beer Alcohol CIP cleaning  Iced tea

Pharmaceuticals

Perfumes Alcohols Aromas WFI HPW Dyes Biotechnology applications

Emulsions Herbal extracts Ultrapure water PUW CIP / SIP purification Infusion solutions

Chemicals

Alcohols Ethanol Hydrogen peroxide Urea Biodiesel

Methanol Solvents Deionized water Glycol solutions Condensates

Features & Benefits

Feature	Benefit
Self-priming (suction head up to 7 m)	Can be mounted above IBCs, storage tanks or production machinery. Keeping the pump off the floor and so reducing risk of contamination.
Excellent pumping behaviour with liquids containing gas	Offers greater capability of pumping liquids such as beer, soft drinks and carbonated liquids
Suitable for left and right rotation	Offers greater flexibility in installation and operation
Quiet operation	Enables pump to be located close to operators and reduces overall sound level in the production area
Dead space-free design (hygienic design)	Allows great variety of liquids to be pumped and easier maintenance
CIP and SIP compliant	Allows easy, fast and efficient cleaning of pump

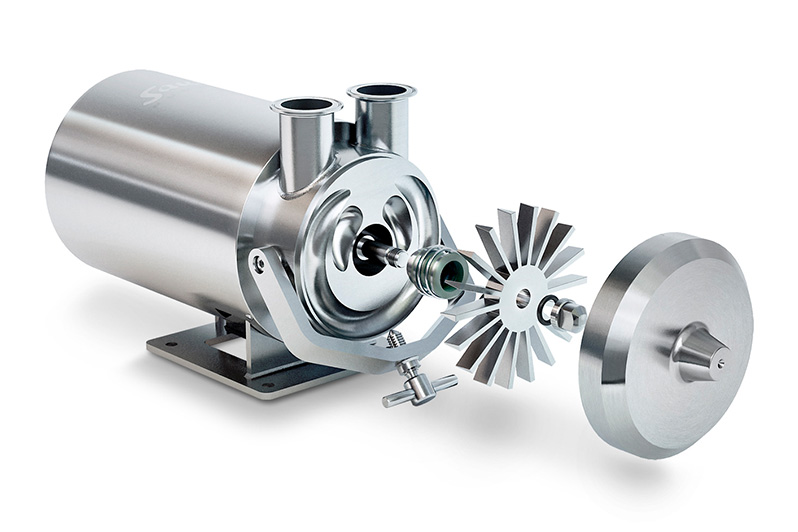

Simple design and easy seal change	Reduces pump downtime and enables pump to be serviced in situ if required
Low maintenance costs and long service life	Reduces operating costs and reduces pay back time
Gentle pumping action	Reduces risk of damage to structure pumped liquid, for example fat content of milk
Various mechanical seal systems available	Allows a wide range of chemicals to be pumped



Specifications

Flow rate	up to 70 m³/h
Delivery head	Up to 43 m
Temperature range	-30°C to 130°C, max. 145°C (SIP)
Maximum viscosity	up to 500 mPas
Nominal maximum pressure	PN10

• ATEX for zones 1, 2, 21 and 22
• Pharma design for maximum safety, reliability and hygiene (surface roughnesses down to Ra 0.4 μm)
• Magnetic coupling hermetically sealed version HDM for crystallising, toxic, flammable and environmentally hazardous liquids
• Bearing housing for special requirements
• Mobile with sturdy trolley and accessories to customer requirements
• Heatable with liquid or heating cartridge
• Complete draining at the lowest point of the pump
